New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



Cutting Solid Wood (Oak)

Workpiece : Solid wood (oak)

Similar materials: Different types of solid wood, laminated wood

solid wood cutting oak guhdo

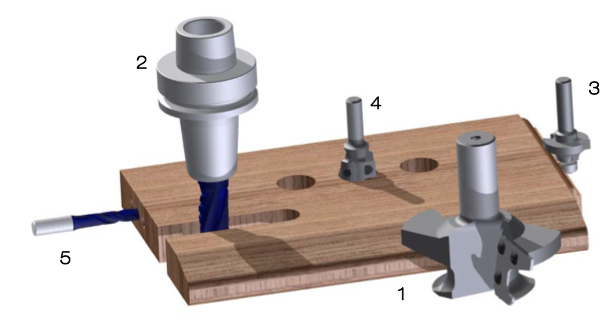

cutting tool examples for use on solid wood

1 RAPIDO Profile Cutter T.C. Z2

2 Roughing-Finishing Cutter solid T.C. Z3

3 Ovolo Cutter T.C. Z2 No.

4 Hinge Boring Bit with rev. T.C. tips Z2+V2

5 Twist Drill solid T.C. Z2

For more information visit our website at guhdo.com!

Feed Rates for Plastics

DSC_0615“Feed rate” refers to the speed at which material is being “fed” through the machine. It is generally measured in inches per minute or meters per minute, depending on whether the Imperial or metric system is used. The Feed rate is part of the formula used to calculate chip load (size of the chip created in the cutting process). The other parts of the formula are motor speed on the router (rpm) which dictates how many revolutions per minute the tool is turning, and the number of flutes (wings) on the tool. To calculate chipload the formula is Feedrate / (RPM x number of flutes). The most common problem, in regard to incorrect chipload is premature tool wear, tool breakage, most often due to excessive heat buildup and poor material finish/chipping.

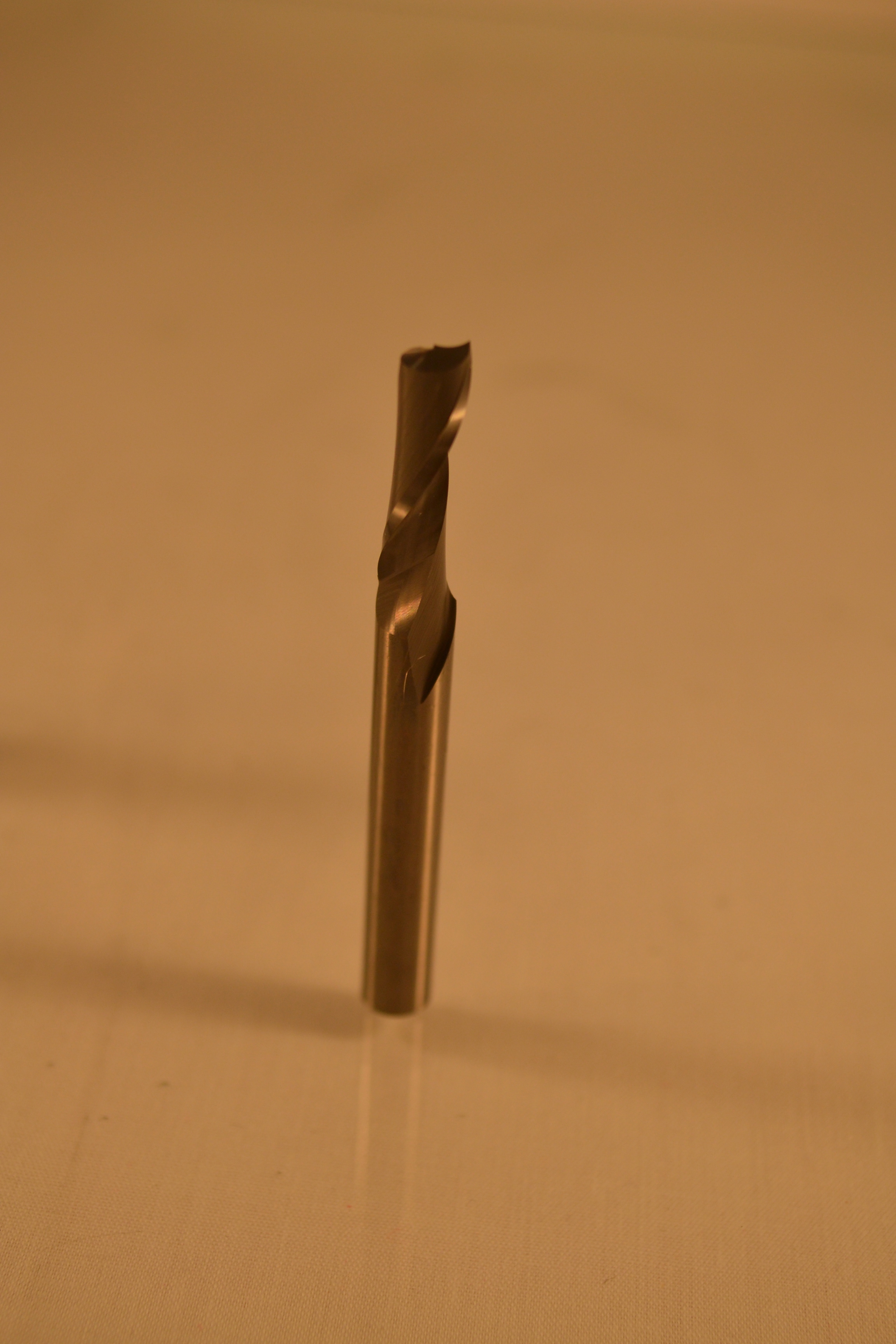

DSC_0608

Typical chip load range for Plastic Materials

Hard Plastics .004-.016″
Soft Plastics .006-.014″

The smaller the tool diameter, the lower the chip load that applies, will be.

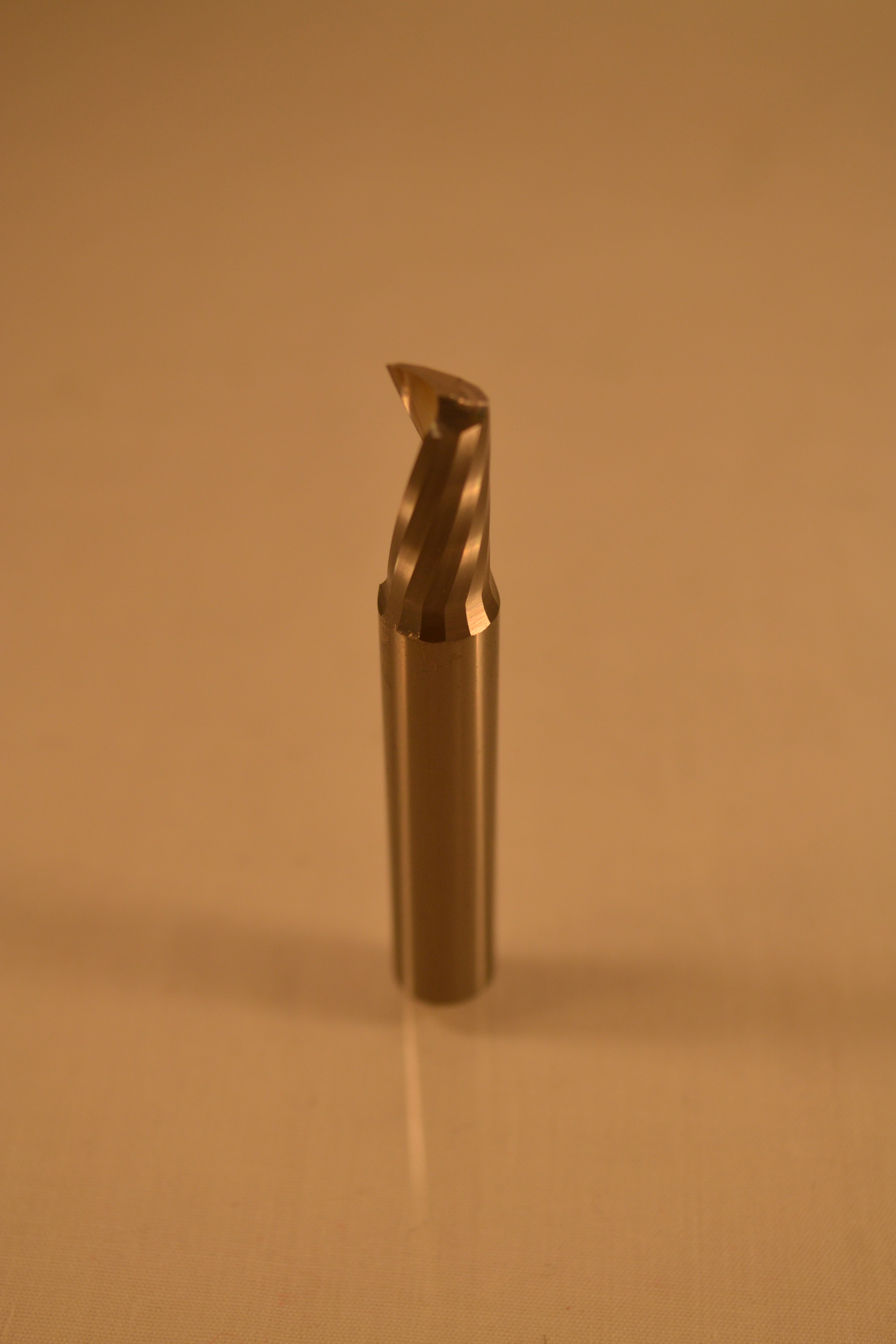

DSC_0607



For more information visit our website at guhdo.com!

Collets

DSC_0009

Regular replacement of collets should be considered part of good machine maintenance as the condition of your collets will directly reflect upon the tool life as well as quality of finish on your product. Collets that are worn and dirty will create vibration during the cutting process.

CNC Machine Collets

Inspect your cutting tools to see if collet marks are visible on the shank. If so, that is an indication of vibration occurring during the cut and it is time to replace your collet. Although, the vibration can also stem from an imbalanced collet nut or tool holder.

DSC_0224

Did you know that in addition to the standard collets with a tolerance of 0.5 mm, GUHDO also offers Premium collets with a tolerance of 0.15 mm?!

Screen Shot 2013-04-20 at 2.26.56 PM

For more information see our webpage at http://www.guhdo.com/toolholders-collets-arbors/collets.php
