New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.

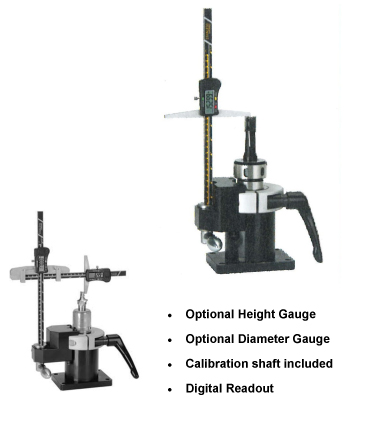

DIGITEC Tool Measuring System

Digitec Measuring System

Digitec Measuring System

Make tool setup a snap! Streamlining and optimizing production, calls for creating an efficient operational sequence when routing, milling and boring. That includes highly accurate tool measurement and setup, as after each tool change, the new tool data must be programmed into the machining center/router in order to maintain consistent machining results as accuracy is paramount. When firmly secured to a work bench, the Digitec Measuring System offers a safe and effective way to check and prepare your tooling before it is put into the machine, reducing test cuts and wasted time and material.

The Digitec measuring system makes tool setup simple. The tool length dimension A (see image below) of single or multi-part tools with HSK63F or 63E holders can be measured quickly and precisely up to a maximum height of 270mm (10.63”). This basic tool setup fixture makes tool setup quick and easy.  As needed, the height gauge and diameter gauge are both individually available with optional accessories that provide you with a complete tool measurement system!

Interested in increasing accuracy while saving time on tool changes? Contact us now for more information on the Digitec Measuring System or any of our basic tool setup fixtures.

Digitec Benifits

Digitec Benefits
