New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



20mm Alternate Shear Insert Router Bit – Solid Carbide Replacement!

We are excited to introduce our new 20MM Alternate Shear Insert Router Bit (Part No. 22006). This 2-flute, 20 mm (0.787) diameter router bit is available in a 30 mm (1.180”) cutting length and an alternating shear cutting action. Though not recommended for machining double sided materials, this insert router bit is ideal for perimeter & grooving applications of raw composite (MDF & Particle Board) materials, solid woods and difficult to machine products such as Phenolic and especially solid surface (Avonite, Corian, Wilsonart, Formica & Swanstone).

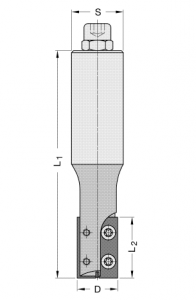

3/4" Alternate Shear Insert Tool - PN 22006

3/4″ Alternate Shear Insert Tool – PN 22006

The face-mounted inserts enable a large gullet area which effectively and efficiently evacuates the material chips and aids in the heat dissipation. This is particularly important when machining heat setting materials such as Phenolic and Solid Surface materials. Standard double sided inserts are utilized and depending on the material being machined,  are available in two different carbide grades.  Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction and excellent finish results!

Alternate Shear Pattern - PN 22006

Alternate Shear Pattern – PN 22006

When it comes to machining thicker materials and when a larger diameter is acceptable, the series No. 22006 alternate shear insert router bit is an ideal alternative to a 3/4″ solid carbide compression bit.

Interested in more information? Give us a call at 1-800-544-8436 or contact us now!

RAPIDO Glue Joint Insert Cutter

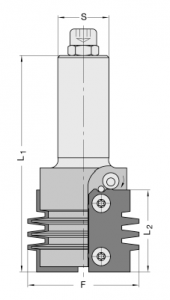

RAPIDO Glue Joint Cutter

RAPIDO Glue Joint Cutter

As an extension of our Rapido profile insert system we offer a standard Rapido profile insert router bit for glue joint operations. Available in a precision ground tool body with ¾” or 25 mm shank, this 2-wing profile insert router bit is designed to produce architectural style glue joints in soft and hard woods.

Depending on the material thickness and desired profile, five standard profiles are offered. This tool is ideal for architectural moulding and door and window companies where finger joints are required for producing arched or curved profiles.

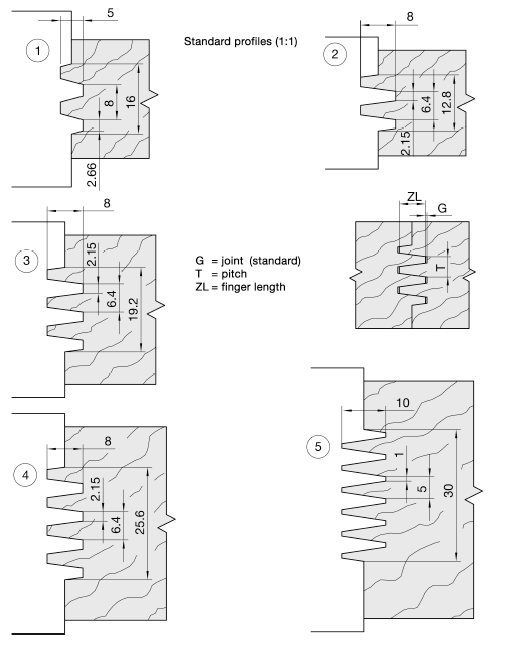

RAPIDO Glue Joint Cutter - Standard Profiles

RAPIDO Glue Joint Cutter – Standard Profiles

Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction, and an excellent finish result! Interested? Contact us today.

Z-Mill – Designed for High Feed Rates

The Z-Mill high shear PCD (polycrystalline diamond) router bit is designed for running at high feed speeds while still providing an excellent finish quality. This tool is supplied with a high-density steel tool body and depending on the cutting diameter, is offered with either 2 or 3 cutting wings.  What sets this high-performance PCD bit apart from the rest is the 20-degree position of the cutting tips.

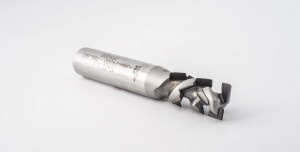

High Shear PCD Router Bit - Z-Mill

High Shear PCD Router Bit – Z-Mill

The high shear angle provides an excellent finish and the durability of the diamond will lead to cost savings when compared to solid carbide over the life of the tool. The Z-Mill is well suited for cutting a variety of materials including MDF, Chipboard, Laminated materials, and both hard and soft wood. The high shear angle offers the benefit of reduced cutting pressure and promises improved results, especially when exiting the material which many times leads to “blow out” . The performance of this tool in terms of speed and finish quality is truly unmatched.

 Contact us for more information on the Z-Mill  and for more information on how PCD can improve your tooling budget.
