Quick Change Adapters for Drill/Boring machines

Each machine has a unique and different design quick change adapter and to help you identify them, we have listed them below:
The Weeke adapter.  Part# 6050.006.10
Diameter 20/10mm 46mm long

Weeke Drill Adapter

Weeke Drill Adapter

The Biesse adapter.
Part# 6050.003.10 (for 37mm), #6050.003.30 (for 30mm)
Diameter 20/10mm and length 37 or 30mm

Biesse Quick Change Adapter

Biesse Drill Adapter

The Busellato adapter
Diameter 19/10mm and length 34.5mm

Busellato Adapter

Busellato Drill Adapter

The Morbidelli adapter
Diameter 20/10mm and length 43mm

605000810

Morbidelli Drill Adapter

The Vitap adapter
Diameter 18/10mm and length 42mm

605001110

Vitap Drill Adapter

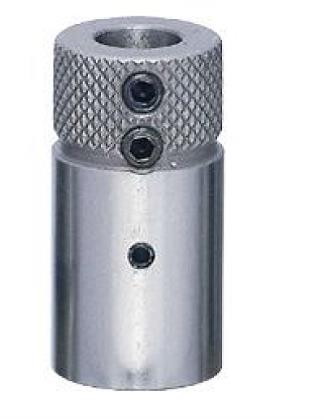

The Maggi, Griggio and Masterwood adapter
Diameter 20/10mm and length 40mm

605001210

Maggi, Griggio, Masterwood Drill Adapter

For more information, visit us at www.guhdo.com or call 800-544-8436

NEW !! Quick Change Adapter requiring no special clamping screw

jsofix

Quick Change Adapter for drill/boring machine

Introducing a new generation quick change adaptor (JSOFIX) for fast and easy tool changes of 10 mm shank drill bits. Whether you have a CNC drill station, a multispindle in line boring aggregate head, or multi spindle boring machine, this adaptor offers simplicity and efficiency. No special length screws (GUHDO No. 39075-0-05017-R) as required with other manufacturer clamping system (such as Leitz PM-320-0-55, 56, 57 & 58). Drill bits are inserted into the chuck and guided into place by magnetic force, then locked into place by a powerful but short stroke of a sliding sleeve. With the quick changing capabilities, the item also offers smooth running and improved accuracy. No screws or wrenches required, saving valuable time and money! When not in use, a dust protection bolt and plastic cap is available to protect against dust entering the clamping area. Contact us for additional information on this product and other clamping systems! jsofix2
