Cutting Carbon Composites Example

Workpiece : Carbon composite

Similar materials: Fibreglass-reinforced plastics

guhdo carbon composite cut cutting

carbon composite tooling examples

1 Diamond-Dowel Drill

2 DIATEC-4 Diamond Router Cutter

3 DIATEC Diamond Cutter with alternate shear angle

4 DIATEC-4-QUATTRO Diamond Router Cutter

For more information visit our website or check out this expanded article on cutting composites or feed rates in plastics.

Cutting Particleboard with Rough Cut Veneer or Stainless Steel laminate

Workpiece left: Particleboard with rough cut veneer
Workpiece right: Particleboard with stainless-steel cover

(Similar materials: Particleboard with magnetic foil etc.)

cutting particleboard guhdo illustration router bit stainless steel veneer

1 Cutter with rev. T.C. tips Z2+2 No. 22029-5

2 Solid T.C. cutter with alternate shear angle Z2+2 No. 20252-6

3 ISODUR Dowel Drill T.C.T. Z2 No. 30570-5 4 Dowel Drill T.C.T. Z2 No. 30540-5

5 MEGASPEED Diamond Router Cutter Z4+2+4 No. 15600-9

6 Double Edge Trimming Cutter w. rev. T.C. tips Z2 No. 22293-5

For more information visit our website at www.guhdo.com

PCD Diamond Router Bit Designs

These PCD diamond router bits were recently featured in an article about Tooling Technology for Woodworking on woodworkingnetwork.com as one of the greatest ways to reduce tooling costs in the right situation. PCD tools are great for situations where the material being cut is consistent lacking metals or impurities that might chip the bit.

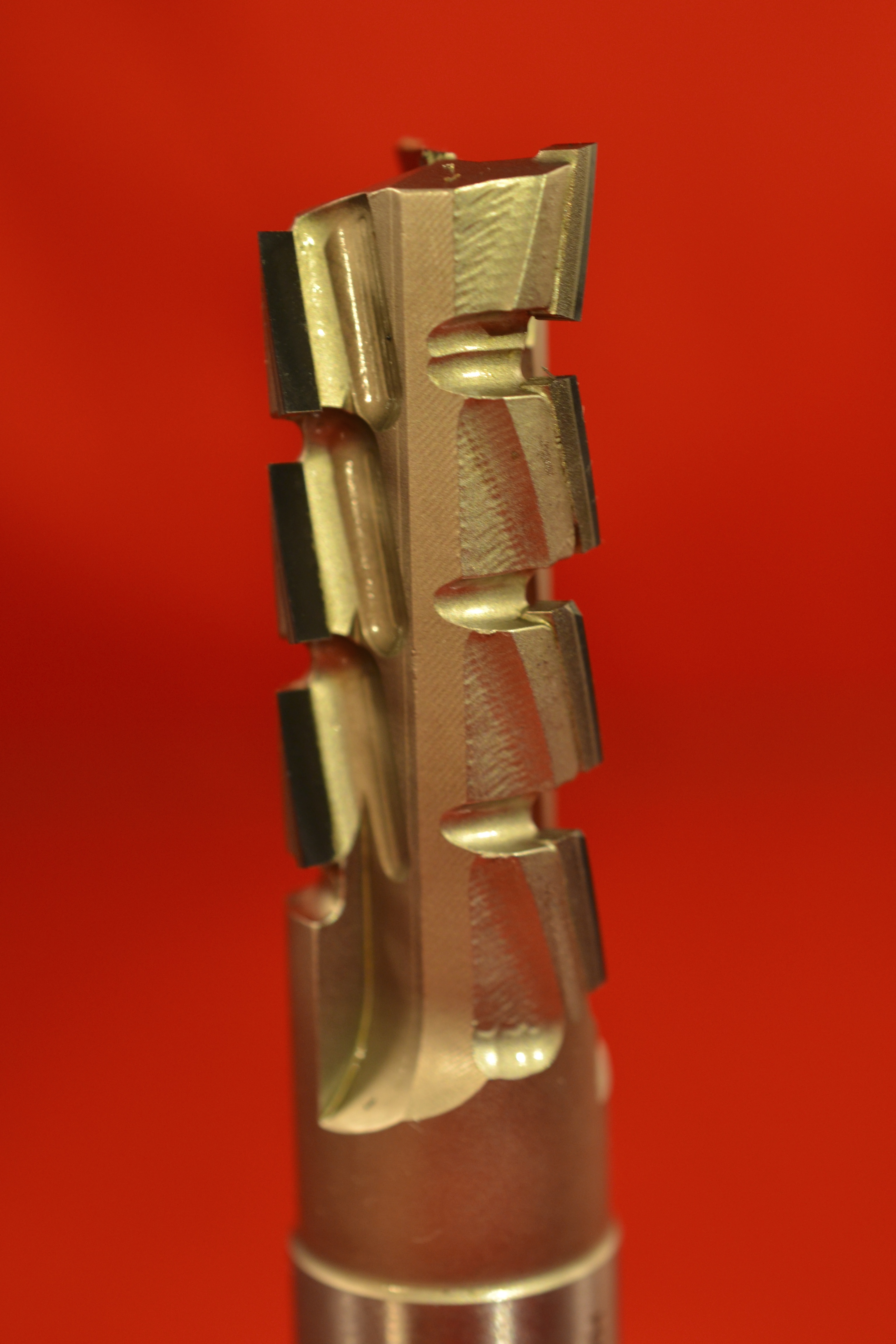

68116811- Our disposable style single flute diamond compression bit (Z1=1) is designed to be used in slower feed rate applications (to 18ft/min) with a cut length of 1″. While this tool is considered a disposable bit it can be sharpened one time greatly increasing the cost savings over solid carbide when comparing the costs.

6812 –  Our 2-flute diamond bit features a solid carbide tool body and a short upcut, suitable for nesting cuts. The cutting edges shear toward the center of the material in an up/down angle, to provide a very clean cut on laminated materials. This bit can be sharpened approximately 4 times when used under normal wear conditions and can be run with a feed rate of up to 650ipm.

6818 – Our 3-flute diamond bit features a solid carbide tool body and a short upcut and like our 2 flute it’s suitable for nesting cuts.  The cutting edges shear toward the center of the material in an up/down angle, to provide a very clean cut on laminated materials. This bit can be sharpened approximately 4 times when used under normal wear conditions and can be run with a feed rate of up to 900ipm. The biggest difference between the 2-flute and 3-flute is the feed rate which can be used.

1/2 inch tooling router bit guhdo PCD diamond

For more information visit our website at www.guhdo.com

Carbide Insert V-Fold Mitre Bit for CNC machining.

Our mitre-fold V-Groove Routerbit boasts a special tip grind for perfect fold and corner clean out. Available in 91° standard version (#4320.050.34) which is used on wood and composite materials up to 25mm thick, which allows for expansion and glue space, there is also a true 90° version available (#4320.050.34S) from stock which is used specifically on solid surface material such as Corian.
In addition to standard dimensions, special sizes and angles are available on request.

v-groove, mitre fold, miter fold, CNC  Vgroove

GUHDO Insert V-Groove Bit

For more information visit http://www.guhdo.com/router-tooling/vari-angles.php
