New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



Surfacing Tool With Superior Finish Quality

Now in stock:  A surface planing cutter (Fourcut™) that provides an excellent quality, smooth surface finish!  Specifically designed for applications such as MDF shaker doors and other surface planing requirements in solid wood or MDF,  the Fourcut™ is one of the best economical hardware and tools for production needs where impeccable finish is a MUST!

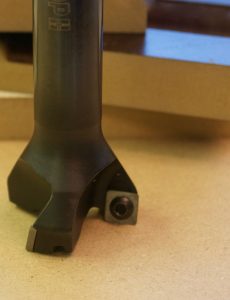

GDP|Guhdo’s New Fourcut™ Planer

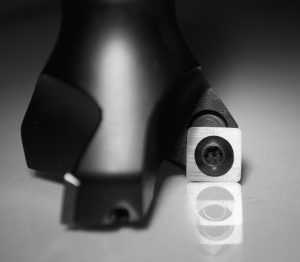

This cutter is engineered with carbide insert knives (PCD Diamond insert knives optional!) that feature special geometry to facilitate a fuzz free finish.  Inserts are 4 sided, providing 4 separate cycles for economical machining cost.  Since old collets or poor quality tool holders can affect the performance of this tool, we highly recommend purchasing on an HSK heat shrink tool holder for exceptional results!

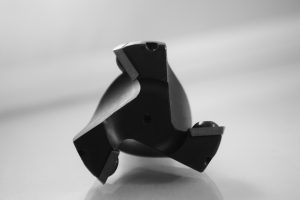

Two Options Available: A 40 mm 3 wing cutter is available from stock, with an 80mm diameter tool also available as a standard when larger surfaces require top quality finish.

If using this for shaker door production, additional passes are required with separate router bits for achieving the square corner effect since a 20mm radius will remain needing corner cleanup.

Both options are manufactured with high quality steel, precision balanced and Made in Germany!

Regardless of your surfacing application the Fourcut™ will maximize your run-time without sacrificing finish. For applications that require longer run-times, the PCD option is a great alternative!

Cutting Rebates or Shallow Grooves? Save Money with this Insert Rebate Cutter

6219 Series Insert Rebate Cutter

6219 Series Insert Rebate Cutter

Does your CNC machining process call for cutting rebates or shallow grooves? Our 6219 Series Insert Router Bit is designed to provide the benefits of carbide with the cost savings of insert tooling.  This 1+1 flute tool offers a dedicated down shear plunging insert, and a main cutting insert that produces an excellent finish on laminate, hardwoods and coated surfaces.  This bit is especially suitable for grooving, rebating and cuts in door production with hinge and lock pockets, face plates, fixing straps for floor sealings, etc.

6219 - Edge

6219 – Edge

6219 Series Insert Router Bit

6219 Series Insert Router Bit

The 6219 Series Insert Router Bit comes in a range of sizes (16-24mm Diameter) and may be used with a replaceable shank system which is available in various metric and inch dimensional sizes:

  • One straight, 4-sided insert knife and one reversible insert tip for plunge cutting
  • Great for rebating and grooving producing a clean surface finish
  • Produces a clean finish on laminate, hardwood and coated surfaces

Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction and excellent finish results! Interested in more information? Give us a call at 1-800-544-8436 or contact us now!

Vari-Angle Insert Cutter Head

4058 effekt 4058.160.30

The 4058 Vari-Angle Insert Cutter Head is a versatile tool that’s invaluable for any custom woodworking facility, especially moulding and millwork shops. This tool is like no other insert cutter-head on the market and it’s used on a number of machines including shapers, tenoners and moulders. What makes this tool truly unique is its ability to joint at 90 degree producing a wide range of angles, hence the term, “Vari-Angle”.  Manufactured from lightweight aluminum, this tool offers ease of handling and angle adjustment, and is something no wood shop should be without! Great solution for a range of different edge bevels and angled cuts.  The Vari-Angle Cutter Head is produced with two tilting apparatus heads allowing the cutter head to be adjusted to produce varying angles (up or down) from 0 –  90 degree. This is achieved by the use of a simple wrench, turning an inner gearbox that allows the precise adjustment to the desired angle.

Vari-Angle Cutter Head - Adjustable Angle

Vari-Angle Cutter Head – Adjustable Angle

Once the angle is located, the wrench is then used to securely and accurately lock the tilting heads into place. The precise location of the angle is confirmed through a vernier scale located on the cutter head. In most cases, the simplicity and location of the adjustment gearbox allows the cutter head to be adjusted while still on the machine! The tool is available in diameters ranging from 110mm and 170mm and depending on the model, has a cutting capacity of 40, 50, 60 and 80 mm.   The adjustable vari-angle cutter uses standard reversible carbide insert knives making it an extremely economical tool to operate.   Please contact us for more information.
