New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



Novitec – Designed for High Speed Roughing

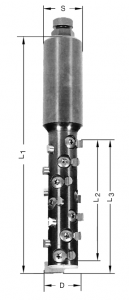

Novitec Roughing Cutter

Novitec Roughing Cutter

The 6235 Series Novitec Roughing Bit is designed for hogging/roughing cuts using higher feed rates in a variety of applications. Great for rebating and jointing,  the Novitec bit offers a superior chip removal rate with interchangeable cutting pins. The cutting pins are re-grindable several times which makes this bit an economical choice for machining thick materials and a great choice for plywood, particleboard and composite panels.  This tool is not recommended when emphasis on superior finish is important.

Novitec Roughing Cutter Applications

Novitec Roughing Cutter Applications

The durable, high-density tool body has a series of cutting pins on the sides with a single plunge cutting tip. The standard version comes with straight cutting pins, however,  up or down shearing pins are also available.   Pins can be selected based on individual need, and can be all downshear, can be arranged in a compression style, or can be all upshear.  The helical positioning of the cutting pins ensures a high-quality cut with a fast pin exchange and no adjustment needed to keep running (Max – 24,000 RPM).

We have these in stock so give us a call at 1-800-544-8436 or contact us now!

Precision CNC Boring Drill Chuck

6380 Series Universal CNC Boring Chuck - HSK Style

6380 Series Universal CNC Boring Chuck – HSK Style

The 6380 Series Universal CNC Boring Chuck is designed to clamp precision drill and boring bits with high clamping power and accuracy.  When it comes to clamping, the 6380 Series utilizes a Jacobs chuck clamping system, offering superior concentricity with a maximum tolerance of 0.02mm (.0008″) at a 35mm drill length, extending from the output. Drill bits with a flat on the shank are not a problem either.  Flat shanks are clamped accurately and tightly provided the flat portion of the shank is positioned between 2 of the 3 clamping jaws as seen in the picture below. A minimum clamping depth into the adapter of 20mm is required.

6380 Series Universal CNC Boring Chuck - Clamping Flat Shaft

6380 Series Universal CNC Boring Chuck – Clamping Flat Shaft

The maximum RPM of for the 6380 Series Universal CNC Boring Chuck is 20,000 RPM.  This precision drill adapter can be used for RH or LH rotation tools and it’s comes in a range for either 1 to 13mm or 3 to 16mm, depending on requirements.  Interested in more information? Give us a call at 1-800-544-8436 or contact us now!

Cutting Rebates or Shallow Grooves? Save Money with this Insert Rebate Cutter

6219 Series Insert Rebate Cutter

6219 Series Insert Rebate Cutter

Does your CNC machining process call for cutting rebates or shallow grooves? Our 6219 Series Insert Router Bit is designed to provide the benefits of carbide with the cost savings of insert tooling.  This 1+1 flute tool offers a dedicated down shear plunging insert, and a main cutting insert that produces an excellent finish on laminate, hardwoods and coated surfaces.  This bit is especially suitable for grooving, rebating and cuts in door production with hinge and lock pockets, face plates, fixing straps for floor sealings, etc.

6219 - Edge

6219 – Edge

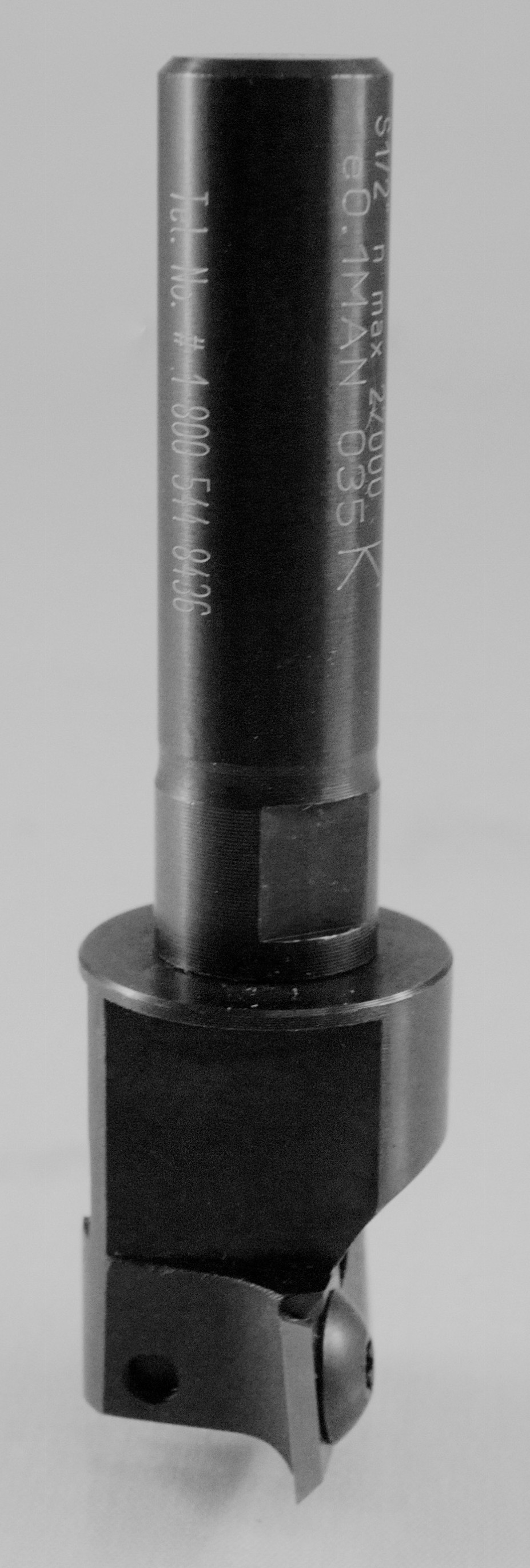

6219 Series Insert Router Bit

6219 Series Insert Router Bit

The 6219 Series Insert Router Bit comes in a range of sizes (16-24mm Diameter) and may be used with a replaceable shank system which is available in various metric and inch dimensional sizes:

  • One straight, 4-sided insert knife and one reversible insert tip for plunge cutting
  • Great for rebating and grooving producing a clean surface finish
  • Produces a clean finish on laminate, hardwood and coated surfaces

Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction and excellent finish results! Interested in more information? Give us a call at 1-800-544-8436 or contact us now!
