New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



Center Plug for HSK63F, HSK63E & HSK50F Tool Holders

plug1

dust plug for HSK63F tool holder

Typically, HSK chucks are supplied with a hole through the interior of the cone. The hole is designed to help aid in the release of the chuck from the motor housing. For some customers who are having concerns about contamination and/or dust entering into the motor, there is a solution! GUHDO offers an inexpensive “Plug” that can be quickly installed. Once inserted, the plug becomes integrated with the chuck and will not affect the integrity of the chuck, motor or tooling. This is an inexpensive, simple and easy solution! As a reminder, it is recommended to thoroughly clean your chucks, collet nuts and collets on a regular basis…………………remembering to install NEW collets (ER25, ER32, ER40, SYOZ25 & RDO35) every 500 machine hours!

To buy HSK63F tool holders now, click here!

plug2

dust plug for HSK tool holder

Item# 6375.000.00

Looking for ETS Style Collets for your CMS Machine?

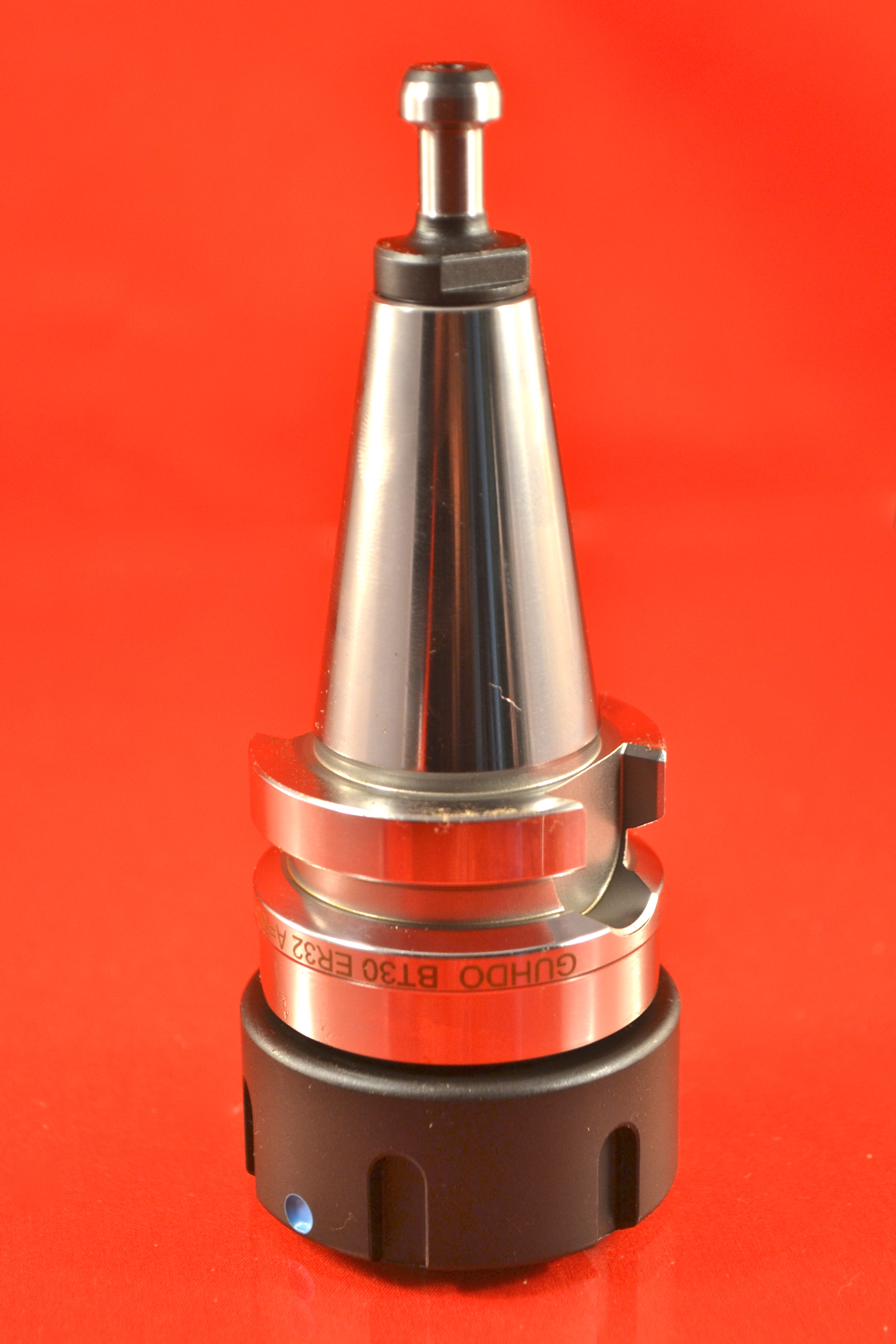

BT 30 Collet Chuck

BT 30 Collet Chuck

ETS Style collets for CMS routers are becoming more difficult to find and are very expensive to buy.  We have BT30 and BT35 tool holders for both machine brands that take standard ER collets….a much lower cost collet to replace. These tool holders come with a ball bearing collet nut, so they can be run in LH or RH rotation.  Don’t want to replace the entire tool holder?  Then you can also convert to ER style collets by simply replacing the collet nut on your existing tool holder.  ER collets are generally about 1/3 the cost of an ETS collet and much easier to source.

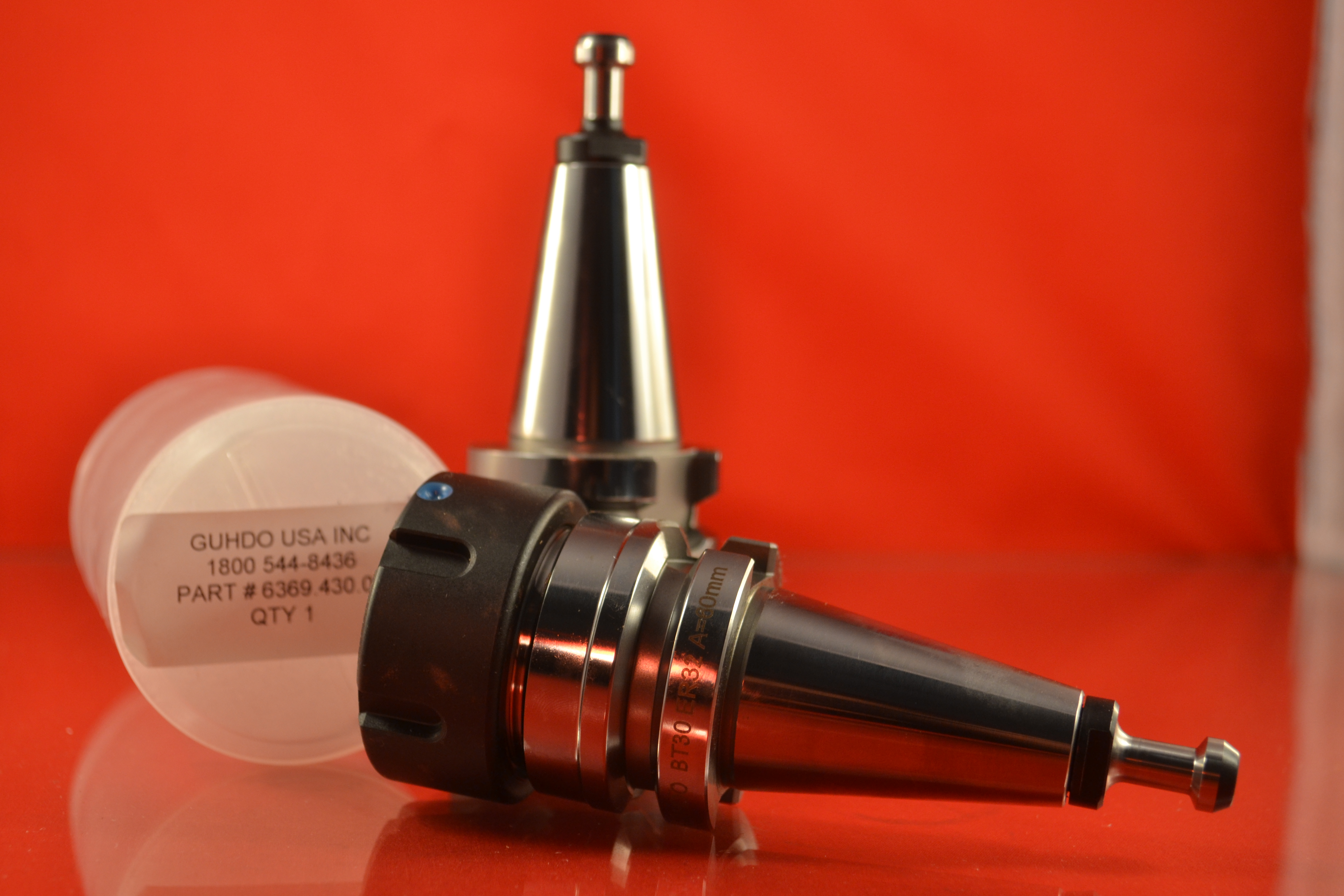

BT 30 Tool Holder

BT 30 Tool Holder

Click here for more detailed information on the BT Tool Holders.

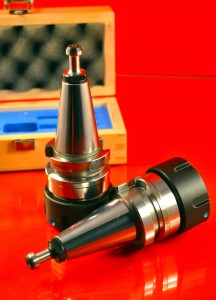

BT Tool Holder for Heian and Shoda CNC Machines

BT Tool Holder for CMS Machine
