New Planing Cutter With Optional Chamfer/Radius Knives

GDP| GUHDO offers an insert planing cutter head for moulders. This unique, multi-functional cutter head is ideal for planing and has the ability to house profile knife attachments.

The planer cutter capabilities:

  • Produce an edge radius
  • Produce an edge chamfer
  • Radius and chamfer location can be adjusted
  • Produce shallow grooves

The Tool Features:

  • Steel body construction
  • QuickLock system for fast knife removal (no hassle with screws)
  • Two cutting wing design
  • Superior finish with soft and hard woods
  • Ability to use double sided knives (carbide and HSS)

Tool Dimensions:

  • Available widths of 130,180,240 mm
  • Adjustable Radius knives of 2-10 mm
  • 45 degree chamfer knives

This tool is available with standard bore options (metric and inch dimensional) as well HSK 85-W interface for Weinig Powermat machines.



New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



Cutting Rebates or Shallow Grooves? Save Money with this Insert Rebate Cutter

6219 Series Insert Rebate Cutter

6219 Series Insert Rebate Cutter

Does your CNC machining process call for cutting rebates or shallow grooves? Our 6219 Series Insert Router Bit is designed to provide the benefits of carbide with the cost savings of insert tooling.  This 1+1 flute tool offers a dedicated down shear plunging insert, and a main cutting insert that produces an excellent finish on laminate, hardwoods and coated surfaces.  This bit is especially suitable for grooving, rebating and cuts in door production with hinge and lock pockets, face plates, fixing straps for floor sealings, etc.

6219 - Edge

6219 – Edge

6219 Series Insert Router Bit

6219 Series Insert Router Bit

The 6219 Series Insert Router Bit comes in a range of sizes (16-24mm Diameter) and may be used with a replaceable shank system which is available in various metric and inch dimensional sizes:

  • One straight, 4-sided insert knife and one reversible insert tip for plunge cutting
  • Great for rebating and grooving producing a clean surface finish
  • Produces a clean finish on laminate, hardwood and coated surfaces

Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction and excellent finish results! Interested in more information? Give us a call at 1-800-544-8436 or contact us now!

Two-Flute Compression Router Bit with Reversible Inserts – 6243 Series

With our 6243 Series Two-Flute Compression Style Router Bit you get the versatility of a solid carbide compression bit with the benefits that come with insert tooling!   The 6243 Series Router Bit is a two-flute compression tool with replaceable insert tips designed to create a chip free surface finish on solid wood and laminated panel products.

6243 Series Insert Router Bit

6243 Series Insert Router Bit

With two solid carbide insert tips shearing downward and 2 inserts shearing upward the 6243 series provides a chip free surface finish on laminated panel products as well as solid wood for jointing, trimming and sizing. The upper and lower inserts are interchangeable as are the bottom and peripheral cutting knives.

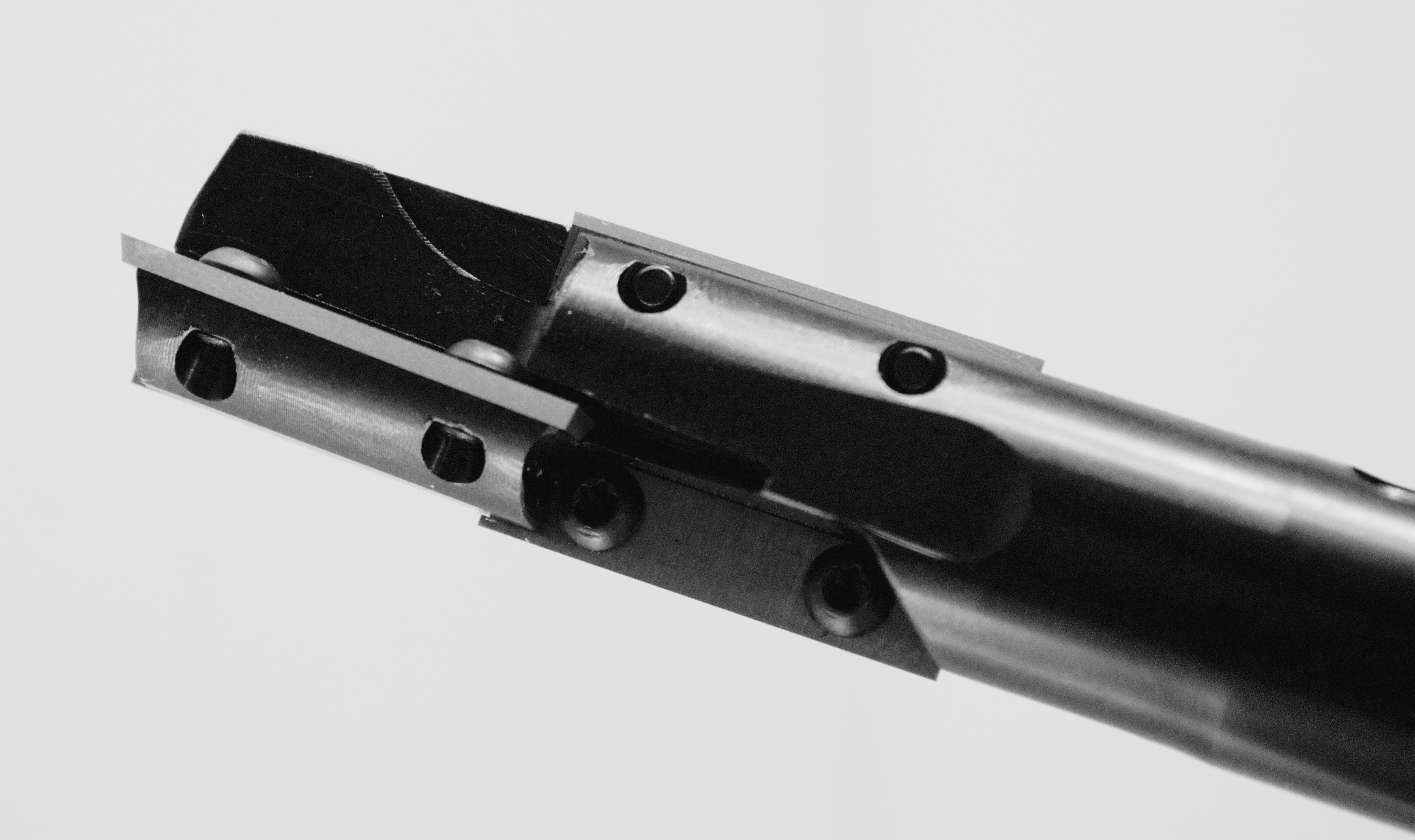

Two Flute Insert Compression Bit - 6243 Series

Two Flute Insert Compression Bit – 6243 Series

When it comes to machining thicker materials and when a larger diameter is acceptable, this up/down shear (compression) insert router bit is an ideal alternative to a 3/4″ solid carbide compression bit for machining double sided laminated panels, solid woods and plastics requiring a high quality, chip free finish. Initially only available with single sided inserts, this series has been completely redesigned to utilize double sided inserts providing a longer run time and cleaner cuts. With the recent design change, the cost effectiveness of this tool has increased dramatically.  Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction and excellent finish results!

Interested in more information? Give us a call at 1-800-544-8436 or contact us now!
