New Start Up CNC Tooling Package

Need to tool up a new CNC machine?

GDP|GUHDO has introduced a special priced CNC tooling starter package which provides a substantial savings on highest quality tooling.  This kit includes 8 HSK tool holders (choice of style based on collet style preferred (SYOZ, ER40 or ER32) and  corresponding 8 collets (choice of sizes).  In addition, the customer can select 14 solid carbide bits (4 downcut and 10 compression styles) and 10 drill bits based on sizes needed.  This package also includes a tool setup fixture, torque wrench with collet key and a spoil board cutter, which comes mounted on an heat shrink tool holder.  Finally, a box of replacement insert knives for the spoil board cutter are also included.

After receiving feedback from our customers regarding a desire for flexibility to get what is actually needed in a starter package, we customized this tooling package to allow the customer to choose which bits are needed.

This package is available at a special  price of $3499.00.

For more information, contact [email protected] or call us at 800-544-8436

8 x  HSK-F 63 Precision Tool Holders

(Made in Germany) supplied with ball bearing collet nuts (superior quality to static collet nuts).  Choice between ER32, ER40 or RDO 35/SYOZ25   collet style.

8  Collets

 Choice of collet style and size.
RDO 35 (SYOZ25), ER40 or ER32 style.

Spoilboard /  Surfacing Cutter on HSK Heat Shrink Chuck

The spoil board cutter is supplied mounted on an
HSK-F63 heat shrink tool holder.  Includes one box of replacement inserts.

Tool Setup Fixture  A tool setup fixture is essential for accurate tool setup and proper tool tightening.  It can be mounted to work bench or table.
Torque Wrench and Collet Key A torque wrench and a collet key which corresponds to the collet style being used.
Down-cut Spiral Bits (4) : Choice of 4 down-cut spiral bits  (any size 1/2″ or smaller)
Compression Spiral Bits (10) :

Choice of 10 compression style bits (any size 1/2″ or smaller), any carbide grade (for wood, composites or melamine) and chipbreaker style option if machining plywood.

TCT Drill Bits (10):     Choice of 10 drill bits of any standard diameter x 70mm overall length and choice of brad point, thru hole style or hinge boring bit.



Specialized Confirmat Drill Bits

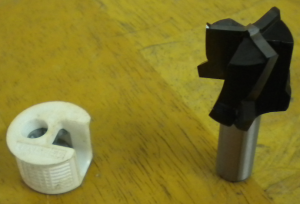

In addition to our wide range of standard dowel, through and hinge style drill bits, our tooling program includes some specialty bits for longer drill lengths and special tool geometries for material that can present challenges.  For the production of cabinets, shelving and RTA (Ready to Assemble) furniture, one would typically use standard drill bits for shelf pins, dowels, screws and hinges. In addition to these standard drills bits, GDP GUHDO goes beyond to offer drills bits for the production and insertion of cabinet hinges, cam locks, connector housings and confirmat screws commonly used in the production of cabinets, shelving and RTA furniture.

30185

Specialized Drill Bits – Built to Spec

We also carry a variety of precision drill chucks and quick change adapters as well so we can quickly fill all of your tooling needs! If you currently utilize hardware supplied by Amerock, Blum, Grass, Hafela and Liberty and seek high-quality drilling solutions, contact us now to see how we can help you with your specialized requirements.

Dowel

Specialized Hinge Bit

Precision CNC Boring Drill Chuck

6380 Series Universal CNC Boring Chuck - HSK Style

6380 Series Universal CNC Boring Chuck – HSK Style

The 6380 Series Universal CNC Boring Chuck is designed to clamp precision drill and boring bits with high clamping power and accuracy.  When it comes to clamping, the 6380 Series utilizes a Jacobs chuck clamping system, offering superior concentricity with a maximum tolerance of 0.02mm (.0008″) at a 35mm drill length, extending from the output. Drill bits with a flat on the shank are not a problem either.  Flat shanks are clamped accurately and tightly provided the flat portion of the shank is positioned between 2 of the 3 clamping jaws as seen in the picture below. A minimum clamping depth into the adapter of 20mm is required.

6380 Series Universal CNC Boring Chuck - Clamping Flat Shaft

6380 Series Universal CNC Boring Chuck – Clamping Flat Shaft

The maximum RPM of for the 6380 Series Universal CNC Boring Chuck is 20,000 RPM.  This precision drill adapter can be used for RH or LH rotation tools and it’s comes in a range for either 1 to 13mm or 3 to 16mm, depending on requirements.  Interested in more information? Give us a call at 1-800-544-8436 or contact us now!

Something old, something new….

DSC_0247

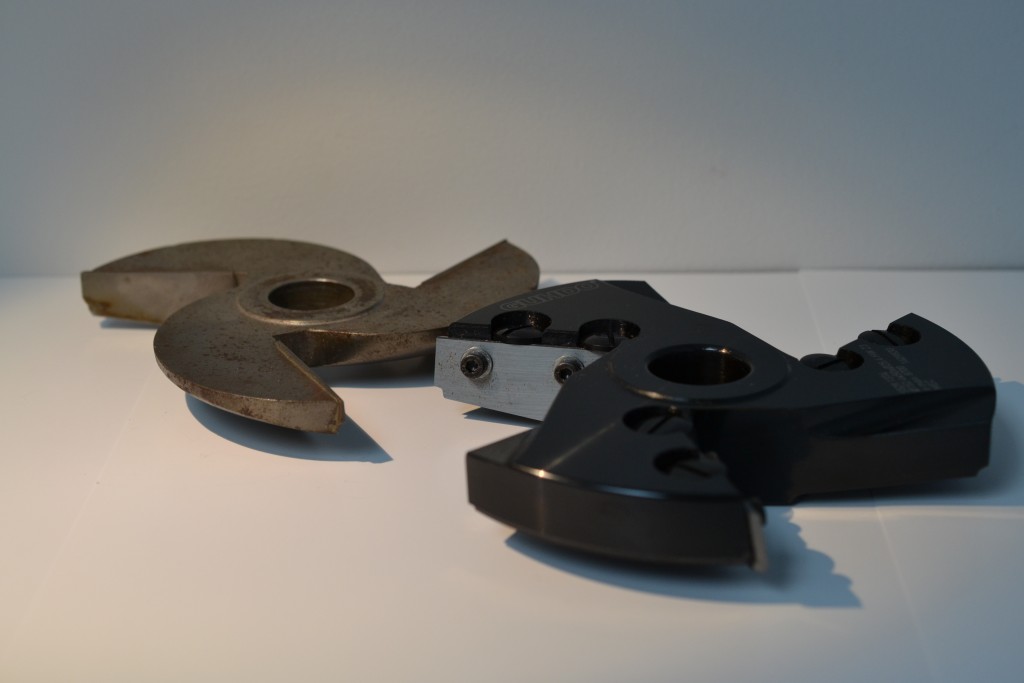

old carbide tipped cutter versus precision carbide insert cutter

DSC_0245

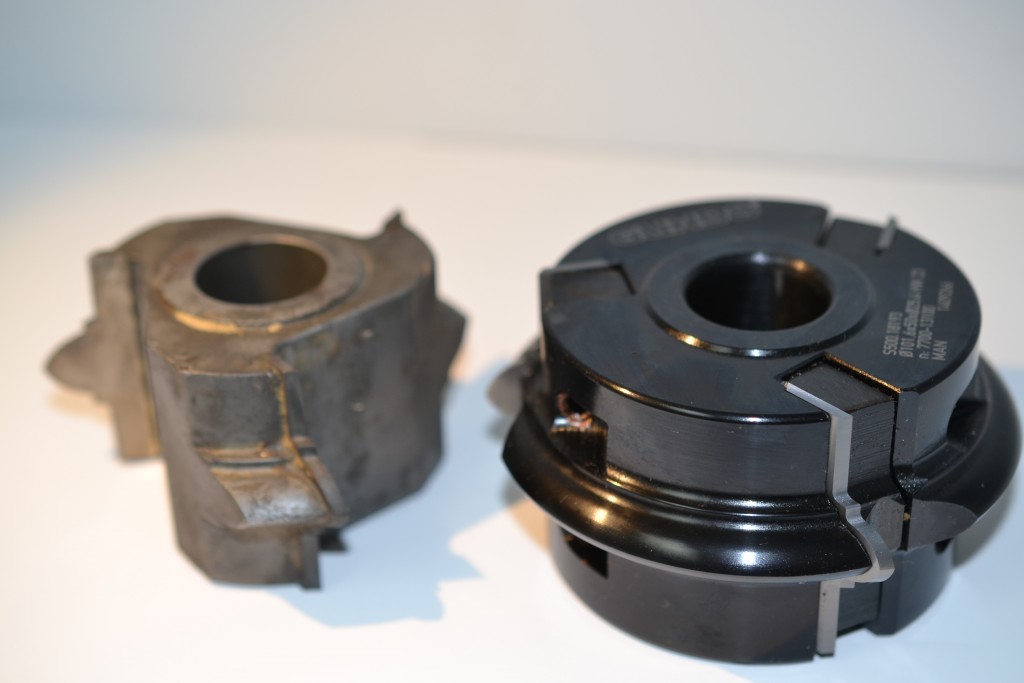

old carbide tipped raised panel cutter versus precision carbide insert cutter

We’ve come a long way in the arena of cutting tool design…but it is always surprising to see unbalanced, outdated and poorly designed cutting tools in operation on production equipment. Using a carbide-tipped cutter in a production setting is neither cost-effective, dependable, nor does it provide the quality and repeatability that customers demand. Here are two examples which recently enabled us to introduce and upgrade customers into 21st century cutting tool standards. The new insert tools will guarantee a quiet-running, balanced tool that provides a longer run time, quick tool changes, 100% pattern repeatability/constant diameter and lower tooling cost over time. Which one do you want on your shop floor?

for more info visit us at www.guhdo.com/video or call 800-544-8436
