Now Here! GDP CNC TOOLING GUIDE!

At GDP|GUHDO, we have put our resources together to provide a comprehensive CNC Tooling Guide. This guide is designed to provide the knowledge to support the most efficient use of your CNC tooling.  We want to put the information into your hands any way that you can use it, so we also have a downloadable link to a PDF version of the presentation here.

Below is a directory for both the video presentation and the PDF presentation.

Topic Slide # Time
Introduction to CNC Tooling 1-7  0:00
Tool Holders and Clamping Systems 8-22  3:37
Drill Bits and Adapters 23-26  10:11
Sizing Jointing Rebates, Dado Cuts and Grooving 27-47 11:30
Other Common CNC Tooling 48-53 22:57
Material Specific Tooling 54-63  25:52
Profile and Custom Tooling 64-68 28:54
Saw Blade and Grooving Adapters 69-72  31:33
Other Tool Tips 73-80  32:32



CNC Aggregate Tooling

GUHDO CNC Aggregate head

CNC Aggregate Head

Guhdo vgroove cutter

V-grooving cutter drawing

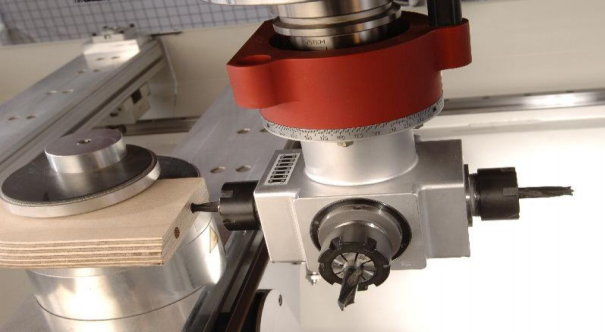

Aggregate heads expand the capabilities of your CNC router.  An aggregate head attaches to the router spindle in similar fashion as your tool holder does.  An intricate inside mechanism converts the spindle output of the aggregate head to perform applications such as horizontal, or angled cutting and drilling.   If you have a CNC machine and need horizontal or angled cutting ability, our selection of precision German-made aggregate heads will give you options for sawing, routing, drilling, planing and more.

We offer a wide variety of saw blades for grooving and sawing, complete with the required counter-sunk holes for mounting on an aggregate head connection.  Specialized tooling, including disposable insert and PCD (polycrystalline diamond) is also available. Specialized tooling available but not limited to are V-Folding cutter heads, cutter heads for Bead Board production and grooving heads for the Lamello Clamex P system. If you are looking to maximize your aggregate production, contact GDP GUHDO for solutions!

Aggregate Heads

Are you struggling with moving your work from one machine to another?  Do you have to re-position the work-piece on your machine?  Is your machine unable to perform specific criteria, which causes you to turn down business?  If you have answered “yes” to any of these questions, continue reading this post!

Screen Shot 2013-06-03 at 11.08.47 AM

Generally, companies consider purchasing an aggregate head for a CNC machine when an additional axis would reduce material handling and speed up production or when existing equipment does not have the capability needed to efficiently perform a job at hand. Since there are many styles and types of aggregates, choosing the right one is essential.

There are three primary considerations:
1) How long will you be “in the cut?” (Excessive heat resulting from the cutting action can cause aggregate failure.)
2) How are you cutting the material? (Will you be primarily routing or sawing?)
3) What type of material are you cutting? (Is it a dense material or a soft material?)

Aggregate head bodies are constructed of aluminum, which keeps the weight to a minimum on your machine spindle and in your carousel.  This also allows the heat to dissipate, keeping the aggregate as cool as possible while it’s in the cut.  Internally, our aggregates use beveled, calibrated gears to ensure there is minimal “backlash” in the gearing.  As you can imagine, there is a lot of energy transferred to the gearing when the aggregate first enters the cut.  That energy is transformed to heat.  Based on this scenario, how you keep the aggregate cooled is critical to the longevity of the aggregate.

Viscous grease is the most common method of cooling/lubricating the gearing.  A greased gear-lubricated aggregate is ideal for routing and light scoring of material.  But, with viscous grease lubrication, there is a “catch”.  During operation, the temperature of the aggregate cannot exceed 185 degrees Fahrenheit.  That is the maximum heat index the grease can withstand. If the aggregate temperature exceeds 185 degrees, the grease will burn off, creating a metal-on-metal situation with the gearing, greatly increasing the temperature internally.

source: Woodworking Network Interview with GUHDO Aggregate Sales Specialist Chris Kelly

Screen Shot 2013-06-03 at 11.12.33 AM

Screen Shot 2013-06-03 at 11.10.31 AM

For more information visit our website at http://www.guhdo.com/aggregates.php
